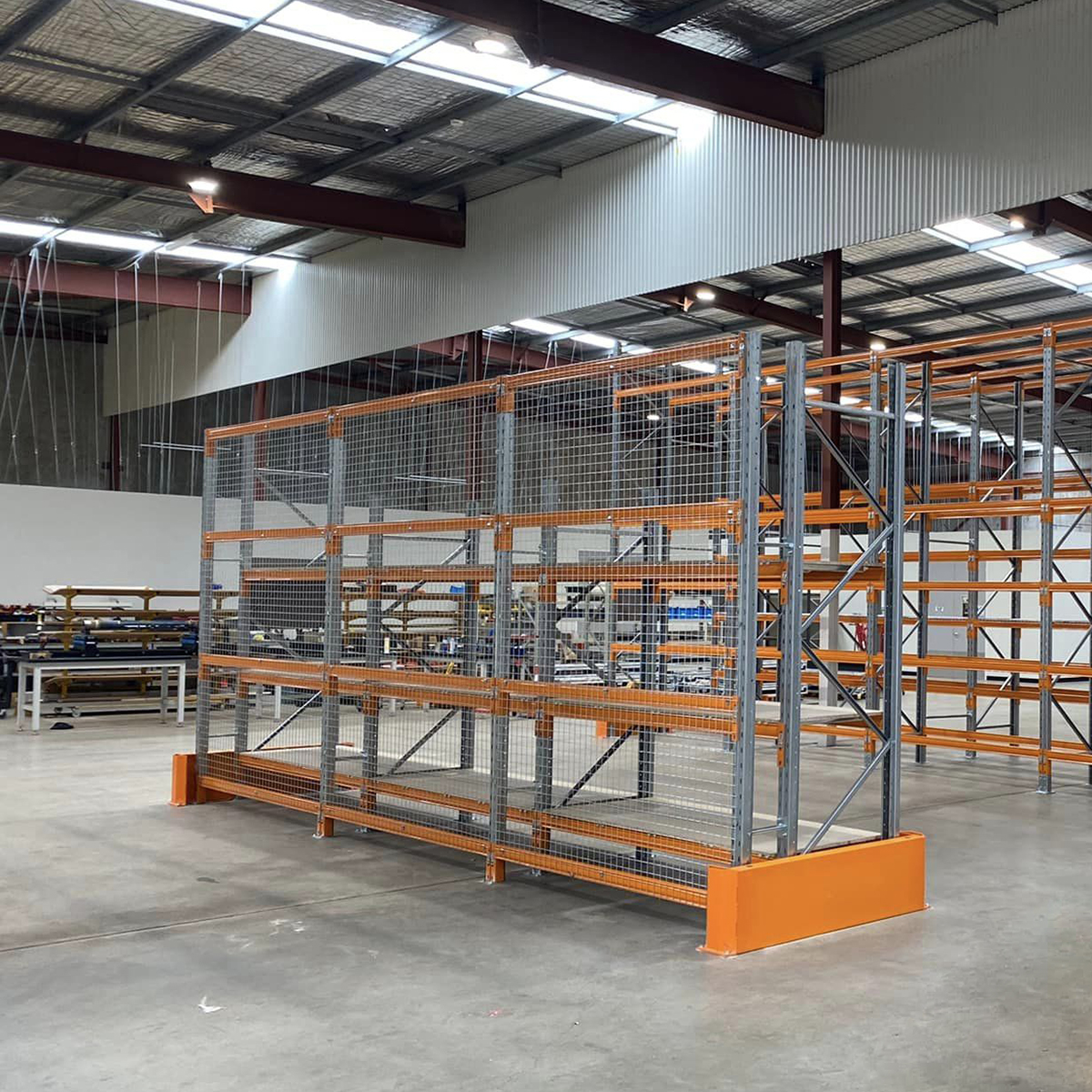

End Row Wrap Barriers

Overall Dimensions:

1090mmL x 225mmD x 400mmH (RH0291 & RGGH260)

1470mmL x 225mmD x 400mmH (RH0292 & RGGH262)

2360mmL x 225mmD x 400mmH (RH0290 & RGGH265)

2530mmL x 225mmD x 400mmH (RH0288)

Internal Length:

960mmL (RH0291 & RGGH260)

1340mmL (RH0292 & RGGH262)

2230mmL (RH0290 & RGGH265)

2400mmL (RH0288)

Uses:

1090mmL compatible with single entry 838mm frames

1470mmL compatible with single entry 1219mm frames or 838mm frame with a 250mm stand-off mesh backing

2360mmL compatible with 838mm frame back-to-back with a 430mm row spacer

2530mmL compatible with 838mm frame back-to-back with a 610mm row spacer

Finish:

Powder coated orange (RH0291, RH0292, RH0290, RH0288)

Hot-dipped Galvanised (RGGH260, RGGH262, RGGH265)

Anchor Requirements:

M14 screw or M16 stud anchors are required.

M10 screw or M12 stud are NOT sufficient

Anchor Points:

1090mmL & 1470mmL have 6 anchor points

2360mmL & 2530mmL have 8 anchor points

Compliance:

Meets the requirements outlined in AS4084.1:2023, which mandates upright protectors/guards for all frames at aisle and gangway intersections
