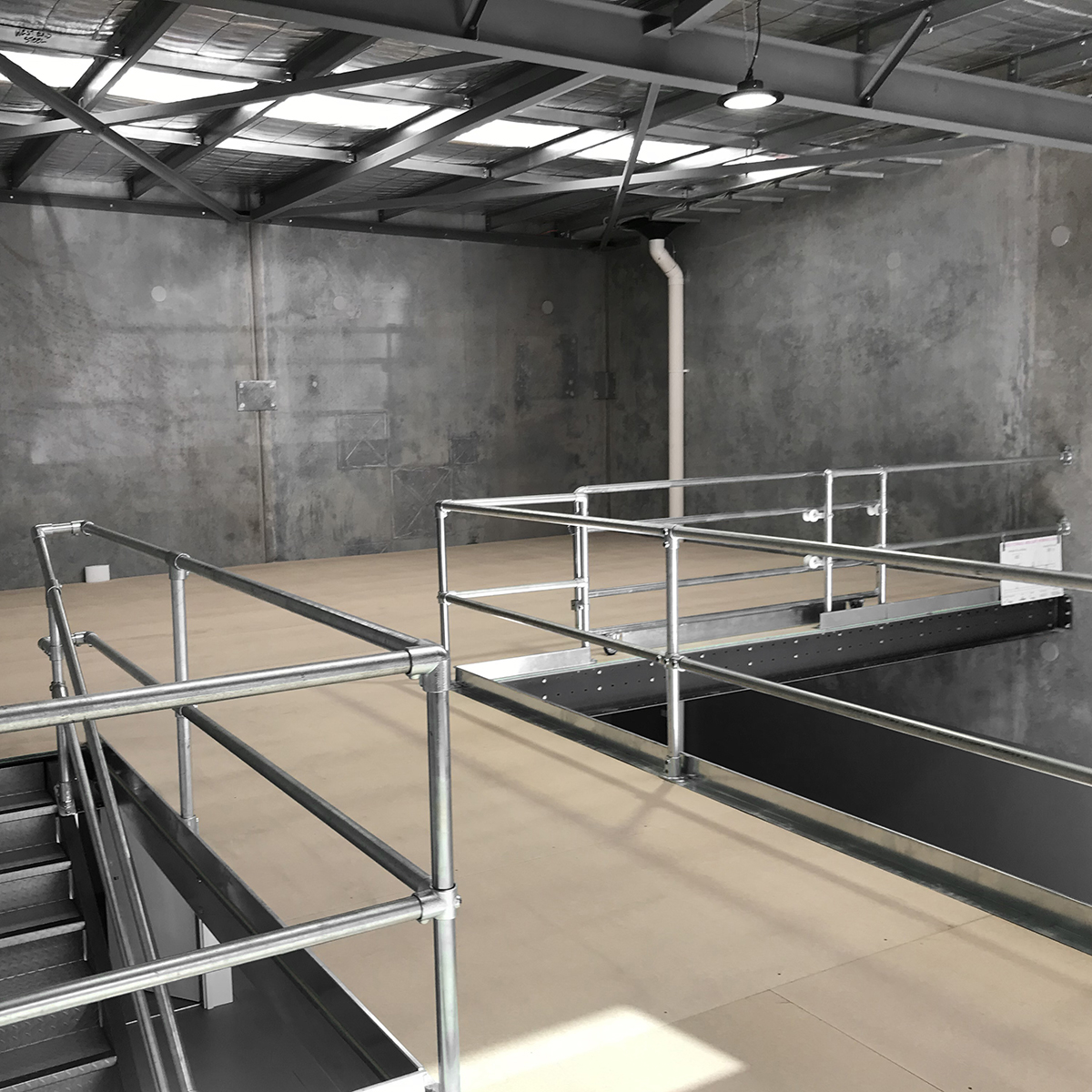

Clamp Style Handrail

Fittings:

HRC101-48 – Short T

HRC104-48 – Long T

HRC116-48 – 3 Way Through (Corner)

HRC119-48 – Knee Cross

HRC123-48 – Variable Elbow 40° to 70° angle

HRC124-48 – Variable Elbow

HRC125-48 – Corner Elbow

HRC127-48 – Adjustable Long T (30° to 45°)

HRC128-48 – 3 Way End Corner Elbow

HRC129-48 – 3 Way Variable Angle Short T

HRC130-48 – Variable Cross (30° to 45°)

HRC131-48 – Wall Flange

HRC132-48 – Standard Base or Wall Flange

HRC133-48 – Plastic End Cap for Pipe

HRC138-48 – Female Gate Hinge

HRC140-48 – Male Gate Hinge

HRC141-48 – Horizontal Railing Base

HRC143-48 – Wall Hand Rail Bracket

HRC144-48 – Railing Side Support (Vertical)

HRC149-48 – Sleeve Joiner

HRC150-48 – Internal Expanding Joiner

HRC170-48 – Mesh Clip Single

HRC171-48 – Mesh Clip Double

HRC176-48 – 3 Way Middle T

HRC198-48 – Double Fixing Bracket

HRC199-48 – Single Fixing Clamp

HRC251-48 – Slope Base Flange (30° to 45°)

Pipe Sizes:

1000mmL x 48mmOD

1950mmL x 48mmOD

Pipe Finishes:

Hot-Dipped Galvanised (HDG)

Powder Coated Yellow

Stanchion Spacing:

The maximum distance from centre to centre of the upright station should not exceed 2000mm

Distance Between Rails:

– Mezzanine Floor Installations:

Rails must be spaced no more than 450mm apart. Additionally, a kick rail is required for this type of installation.

– Floor-Level Installations:

The knee rail should be positioned no higher than 560mm from the ground, and the handrail must be installed with no more than a 450mm gap above the knee rail.
